Monitoring Temperature
The ByTEMP® system developed by Chillida, and represented in America by QSI, allows our clients to monitor the temperature remotely by placing probes for this purpose in their refrigeration equipment, which wirelessly transmit the information to a Gateway that is in charge of concentrating and transmitting, through the client's iternet connection, the information to our cloud application of the data obtained in the measurement 24 hours a day, 365 days a year.
The advantages of the system are:
- Monitoring of temperature in real time
- Configuration of equipment failure alarms
- Data availability for continuous analysis
- Visualization via WEB thanks to our application in the cloud
- Simple and economical installation of the System
- Optional Help Desk Service
- Generation of Reports for Temperature Value Behavior Analysis
The system is made up of 3 basic elements:

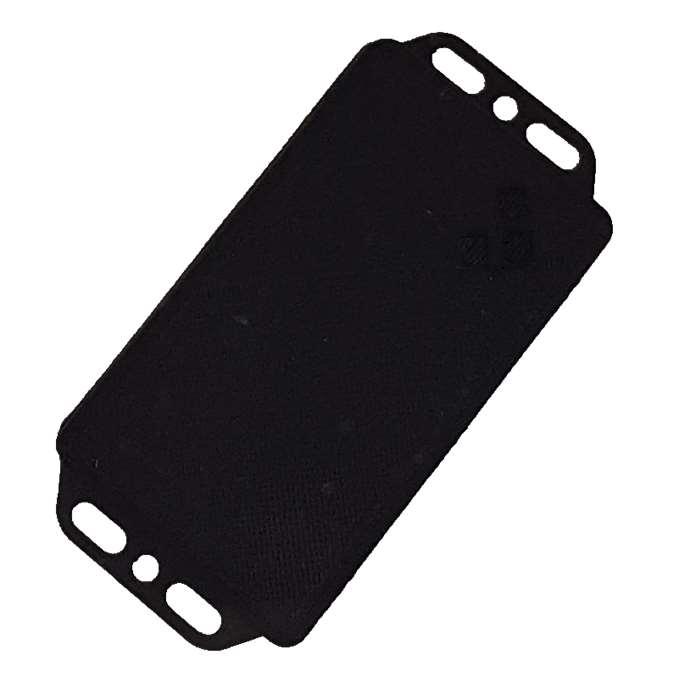

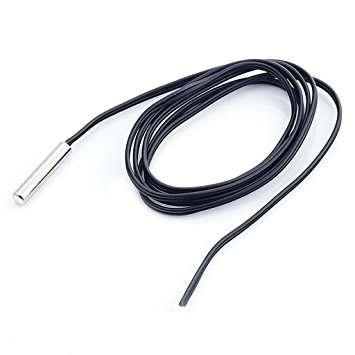

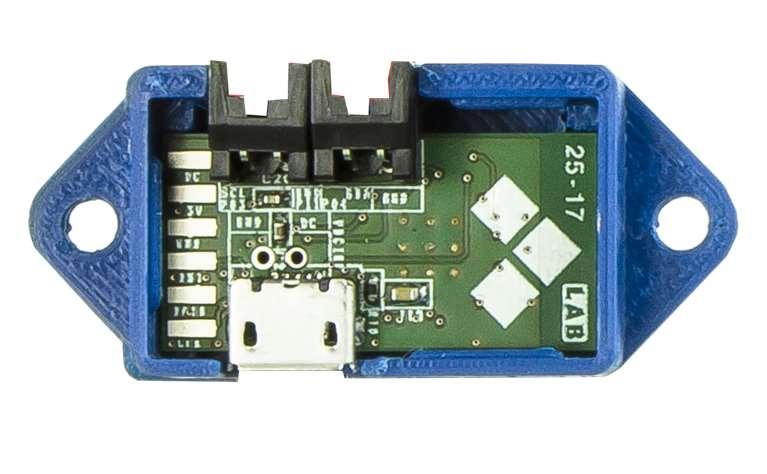

- ByTemp units with two temperature measurement probes per unit. One Hundred Temperature Probes per GateWay
- The Gateway that collects the ByTemp data and routes them to the customer's LAN network for Internet access
- WEB application for the visualization of the data measured by the measurement equipment

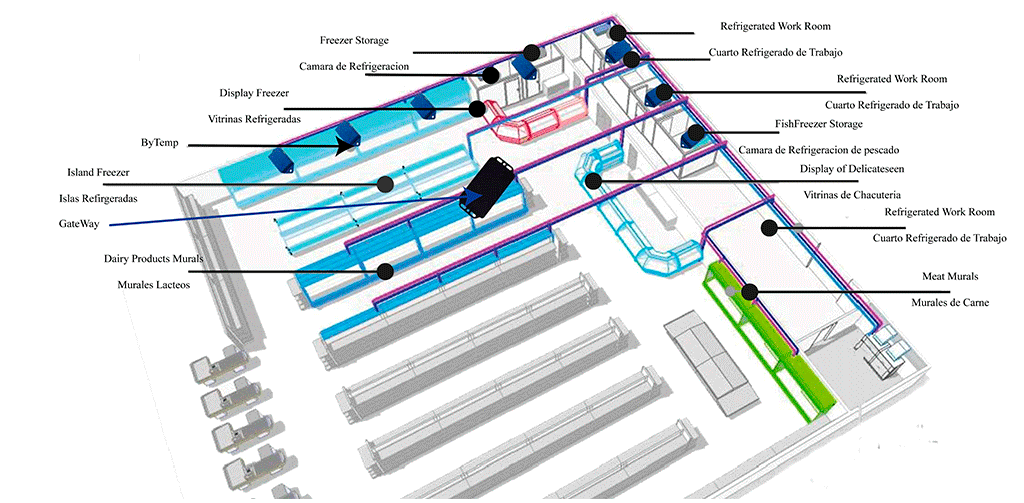

The following two graphics show a configuration scheme of a possible implementation of the ByTemp system

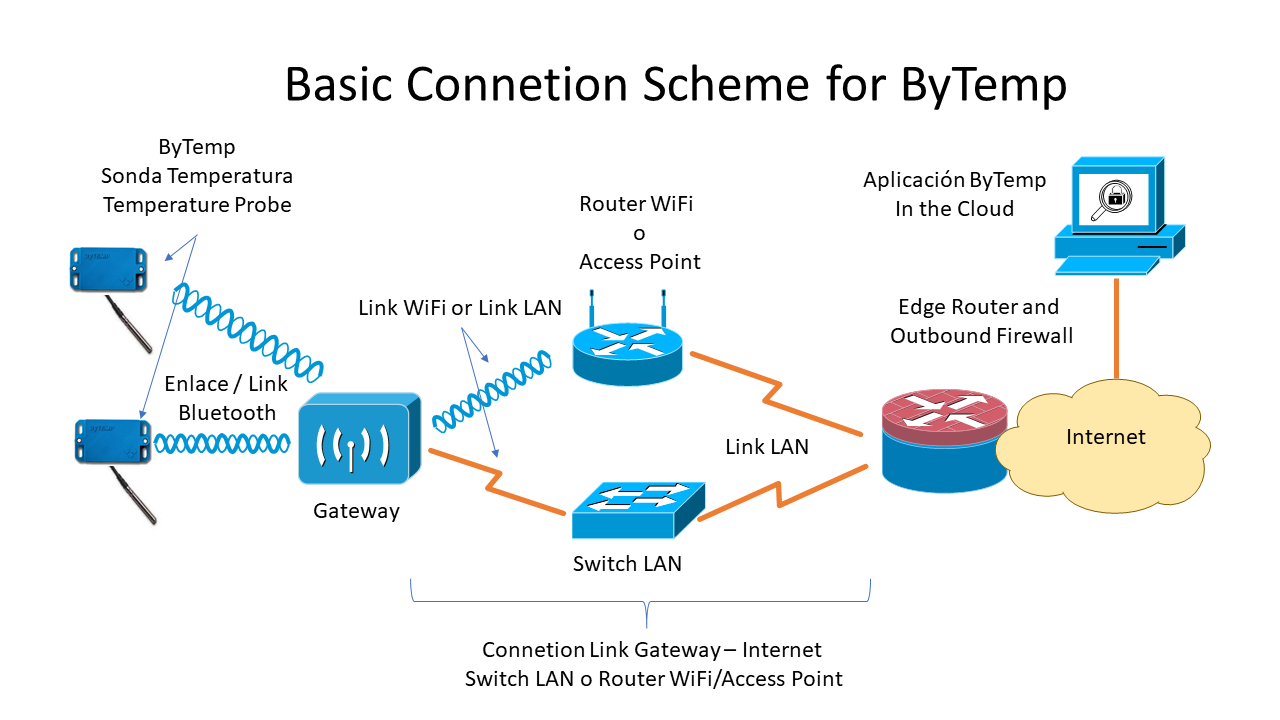

Temperature measurement network interconnection to the client's Lan network and to the Cloud

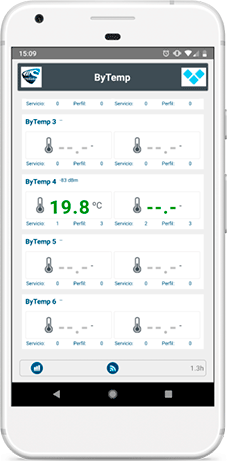

The APP allows our users to access the system and visualize the information measured by the probes, alarm status, measured temperature graphs, and other data. This APP is available for Android phones or tablets, and as we as we can see in the image on the left allows us to access "Local" or "CENTER" or a "Remote" or "On Line" access to the application. The information can also be viewed on any PC with access to the WEB
The "Center" option allows us to visualize all temperature probes located in a determiunada locality, and is used for maintenance and local operation of the devices implemented or during the process of installing new devices.
The option "On Line" allows us to access the WEB application via the Internet and view all temperature measurement probes in different locations of the customer
- The WEB application installed in our cloud allows our customers to view information about temperature levels in different probes in different remote locations
- Measured temperature values are in real time 24 hours a day, 365 days a year.

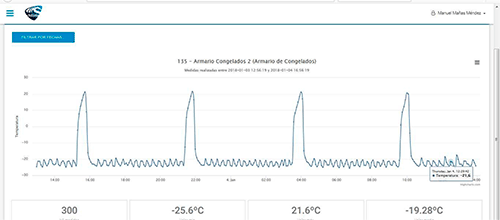

- Our users also have on the WEB the values measured in their different locations and over time, whose behavior can be seen in graphs available for reports, and whose data are exportable for analysis and behavior reporting, which facilitates the planning of preventive maintenance strategies, reducing to a minimum the need for corrective maintenance, which usually involve loss of goods , product dosponability and lost revenue for the business
